Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications

Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications
Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications

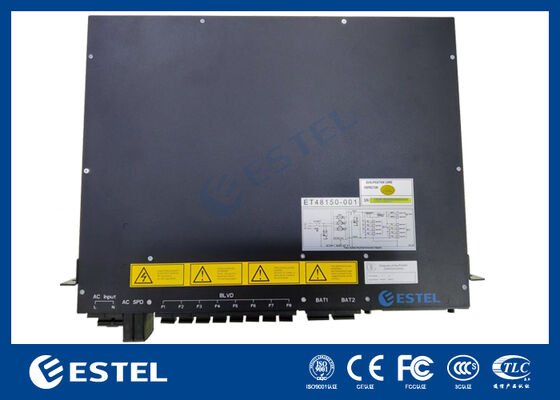

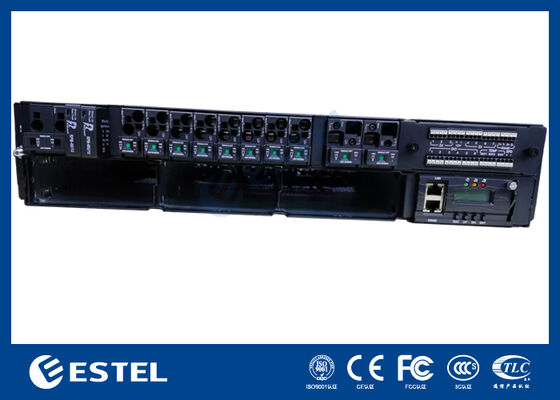

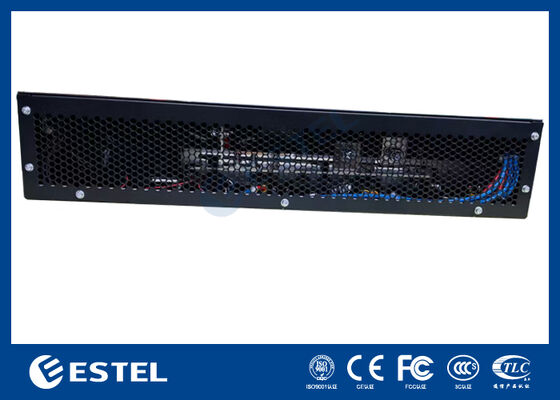

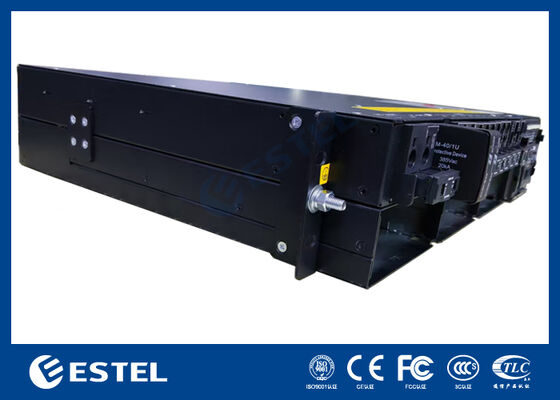

Μεγάλες Εικόνας :  Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications

Λεπτομέρειες:
Τόπος καταγωγής: Shenzhen, Κίνα (ηπειρωτική χώρα)
Μάρκα: ESTEL
Πιστοποίηση: ISO9001, CE, 3C, FCC, TLC
Αριθμό μοντέλου: ΕΤ48150-001
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Τιμή: 358-2143 usd
Συσκευασία λεπτομέρειες: Κουτί/ξύλινη θήκη
Χρόνος παράδοσης: 7-10 Εργάσιμες Ημέρες
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς: 20.000 σετ το μήνα
Λεπτομερής Περιγραφή Προϊόντος
Διάσταση (mm): 482.0(W) *350.0(D) *2U(H) Βάρος: ≤10kg (χωρίς μονάδα ανορθωτή)
Λειτουργία ψύξης: Φυσική ψύξη Λειτουργία εγκατάστασης: Εγκατάσταση σε ράφι 19 ιντσών ή στο εσωτερικό του ντουλαπιού
Βαθμός IP: IP20 Τάση εισόδου: 90~300Vac (LN)
Επισημαίνω:

AC Input Telecom Power System

,

90 to 300 Vac Telecom Power System

,

300 Vac Telecom Power System

ET48150-001 2U Datasheet

Product Introduction


ET48150-001 sub-rack power supply with 2U height compact design can meet critic application needs of fiber and microwave transmission, access device and switch. The system maximum power is 150A, with AC/battery/load MCBs. The cables are front accessing.,

Feature
  • Standard 19-inch width, versatile;
  • 2U highly compact design, saving space and installation cost;
  • Intelligent management, online remote maintenance, reduce site access and maintenance costs;
  • Perfect battery management to extend battery life;
  • Provides a variety of communication ports LAN/RS232/RS485 interface, LAN-SNMP, TCP/IP to achieve flexible networking and remote monitoring;
  • The rectifier module and controller can be hot-swappable, convenient online maintenance;
  • Wide AC input voltage range (90~300Vac)

Product Application

  • Wireless base station;
  • Network transmission;
  • Base stations along expressways and rail transit.

Specification


Category ET48150-001
System Dimension(mm) 482.0(W)*350.0(D)*2U(H)
Weight ≤10kg(without rectifier module)
Cooling mode Natural codling
Installation mode Installed on 19-inch rack or inside the cabinet
IPGrade IP20
Input
Distribution
Input Voltage 90~300Vac(L-N)
Rated input voltage 220Vac(L-N)
Input capacity(AC) 63A/2P
AC SPD 20kA140kA,8/20μs
DC
Distribution
Output voltage -42~-58VDC,rated value:-53.5VDC
Maximum capacity 9kw (3×3kw)
Battery connecion 2*125A/1P
Load breakers BLVD:2*20A1P+6*10A1P
Rectifier Efficiency ≥96%@peak value
Rated power 3000W(lnput Voltage:200~290Vac)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 105.5mm(VW)×291mm(D)×41.5mm(1U/H)
Cooling mode Forced cooling with fan
Controller Signal input 4 Al (3 Battery temp.,1 ambient temp), 6 DI (SPD, 6 common DI)
Alarm output 6 dry contact
Communication port LANRS232/RS485 interface,LAN-SNMP,TCP/IP
Display mode LCD
Environment Operating temperature -40℃~+75℃(When operating a fullload,the temperature is not
higher than 50℃)
Storage temperature -40℃~+75℃
Operating humidity 0%~95%(non-condensing)
Altitude 0~3000m (lf the altitude is within the range of 2000m to 3000m,the
maximum operating temperature decreases by 1℃ as the altitude
increases by 200m.)





Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications 0Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications 1Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications 2Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications 3
