| Διάσταση του υπουργικού συμβουλίου: | WXDXH = 750x650x2050mm (μπορεί να προσαρμοστεί) | Εσωτερικός χώρος: | 19 '' Standard Rack, 32U Space |
|---|---|---|---|
| Υλικό: | Γαλβανισμένο φύλλο | Ικανότητα ρεύματος: | 18kW |
| Μονάδα MPPT: | 6pcs 3kw | Μέθοδος ψύξης: | Κλιματιστικό ή αναγκαστικό σύστημα ανεμιστήρων |
| Βαθμός IP: | IP55 | Συσκευασία: | Ξύλινη θήκη |
| Επισημαίνω: | Outdoor telecom power cabinet 18kW,Telecom power system with solar,18kW rectifier system outdoor |
||

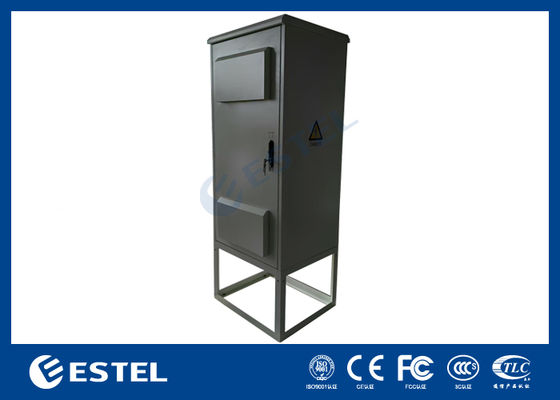

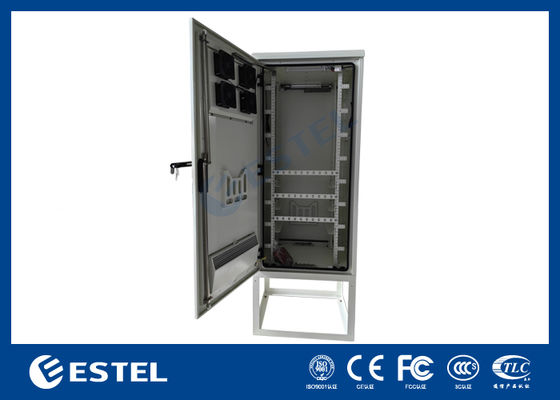

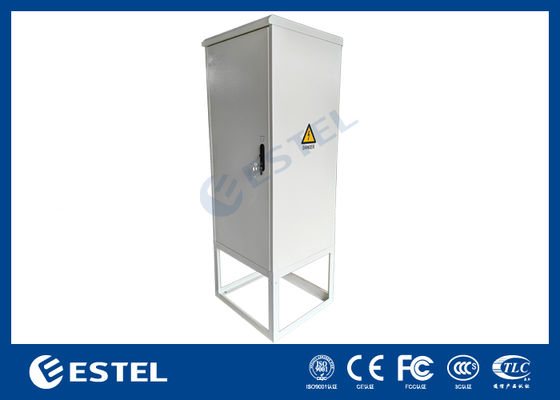

Outdoor Telecom Power Cabinet With 18kW Rectifier System With Options of Solar Power System
1. Introduction
ET7565205A-32U-18kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality solar power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features
3. Rectifier Power System Features
- LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;
- BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;
4. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
5. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7565205A-32U (5U/18kW) |
| Protection Level | IP55 | |
| External Dimension | H 2050 mm×W 750 mm×D 650 m (Can be customized) | |
| Internal Dimension | 19 inch 32U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall. | |
| Thickness of bearing parts: 2.0 mm | ||
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | one front door and one rear door | |
| Cooling System | Air conditioner | 1500W (Optional) |
| Fan | 2pcs fan with one fan controller | |
| Input Voltage | AC220V 60Hz | |
| Door sensor | Door sensor | |
| Temper sensor | Temper sensor | |

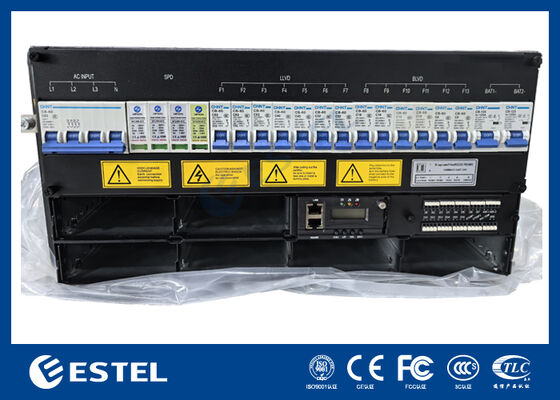

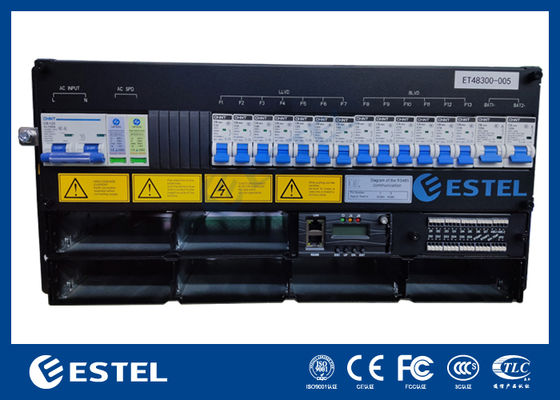

| Rectifier system | Rectifier system | 18kW, 19" rack mount, 5U Rectifier System: |
| 12pcs 3kW rectifier modules | ||
| 1x Monitoring Controller Module, SNMP communication port | ||
| Power distribution: | ||
| LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P | ||
| BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P | ||
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
